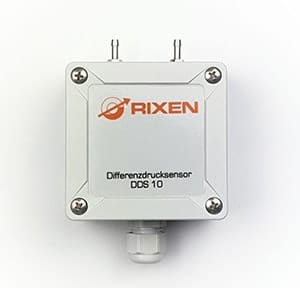

PRECISE DIFFERENTIAL PRESSURE MEASUREMENT FOR ULTRA-LOW PRESSURES CUSTOMIZED TO YOUR SPECIFICATIONS – MEASUREMENT RANGE UP TO ±1800 PASCAL (±18 MBAR)
Robust | Long-Term Accuracy | Maintenance-Free | Largely Wear-Free
PRECISE DIFFERENTIAL PRESSURE MEASUREMENT FOR ULTRA-LOW PRESSURES CUSTOMIZED TO YOUR SPECIFICATIONS – MEASUREMENT RANGE UP TO ±1800 PASCAL (±18 MBAR)
Robust | Long-Term Accuracy | Maintenance-Free | Largely Wear-Free
CUSTOMIZABLE CONFIGURATION
Specify the measurement range, unit, and supply voltage according to your needs when placing your order. This ensures you receive a product that is perfectly tailored to your requirements.
RESISTANT TO AGGRESSIVE MEDIA
The measured media only come into contact with resistant materials within the device, preventing damage from aggressive gases.
LARGELY WEAR-FREE
High-precision ball bearings are used in the devices, minimizing wear in the mechanics and thus in the measuring mechanism.
MAINTENANCE-FREE
A ring scale is designed to require neither maintenance nor recalibration.
LONG-TERM ACCURACY
Instead of a measurement spring, the “calibration weight” determines the calibration. A weight cannot age or be overstretched due to overload.
Ensures accuracy even at very low pressures.
DAMPING BEHAVIOR
The rotation of the ring body and the liquid contained within it create a damping effect during measurement.
MECHANICAL PRESSURE GAUGES FROM RIXEN – THE TRUSTED CHOICE FOR YOUR PROJECT
With over 50 years of experience in designing measuring instruments, Rixen offers precise and reliable solutions for pressure measurement, even at the lowest pressures.
In various applications such as process engineering plants, laboratories, and climate technology, accurate pressure monitoring is crucial. Proper pressure measurement can significantly contribute to the successful operation of your systems.
Why Rixen is an Excellent Choice:
- Proven Precision: Utilize the highly accurate and robust ring scale method, a core component of our technology. This method ensures precise measurements, even under challenging conditions.
- Durable and Reliable: Our devices are resistant to aging and aggressive media, enabling the measurement of contaminated media without compromising accuracy.
- Easy Handling: Rixen devices are designed for easy installation and maintenance-free operation, saving time and reducing operating costs.
Our mechanical pressure gauges are specifically designed to operate reliably in demanding environments. The combination of robust construction and precise measurement technology makes them the ideal solution for numerous industrial applications.
Application Areas of Our Pressure Gauges:
- Process Engineering Plants: Ensure process safety and efficiency through precise pressure monitoring.
- Furnace Construction: Accuracy and long-term reliability for measuring contaminated media.
- Climate Technology/Clean Room: Optimize heating, ventilation, and air conditioning systems through accurate pressure measurement.
Trust the proven expertise of Rixen for reliable pressure measurement in your project.
WHAT MAKES RIXEN’S MEASURING INSTRUMENTS STAND OUT?
The Unique Measuring Principle: The Ringbalance.
Our innovative ring scale uses a calibration weight instead of a traditional measuring spring, offering numerous advantages:
- Durability: No aging or wear, as the calibration weight has no “memory effect.”
- Reliable Zero Point: Always returns to zero, even after prolonged load.
- Smooth Needle Movement: Due to the volume and weight of the ring body.
- Precise Measurement of Small Pressures: Measurement ranges of -20…0…+20 Pa or -10…0…+40 Pa.
- Custom Manufacturing: Each ring scale is handcrafted and calibrated to customer specifications.
MAKING PRESSURE FLUCTUATIONS VISIBLE
Thanks to the generous 150×150 mm scale, pressure fluctuations are clearly visible. This allows for precise assessment of the dynamic behavior in pressure regulation.
- Generous Scale: 150×150 mm for clear visibility.
- Precise Assessment: Accurately analyze the dynamic behavior of pressure regulation.
- Easy Readability: The large scale facilitates reading even from a distance.
- Reduced Error Rate: Clearly visible measurements minimize the risk of reading errors.
Our measuring instruments provide the necessary precision and visibility for demanding applications.
MEASUREMENT RANGES CUSTOMIZED TO YOUR SYSTEM
Our measuring instruments cover a wide range to perfectly fit your specific system:
- Low Pressure Range: Ideal for furnace rooms or clean rooms with ranges like -20/0/+20 Pa or -10/0/+40 Pa.
- High Pressure Range: Suitable for applications like flue gas extraction, drying, and ventilation systems up to 1,800 Pa.
- Flexible Intermediate Values: All intermediate values possible, including:
- -100/0/+100 Pa
- -150/0/+50 Pa
- 0…-600 Pa
- 0…-1000 Pa
- Reliable Accuracy: All versions guarantee an accuracy of +/-1.5% or 1.5 Pa.
LONG-TERM ACCURATE MEASUREMENT OF VERY LOW PRESSURES
Our measuring instruments are not only designed for long-lasting use, but also specifically for the precise measurement of very low pressures.
Robust materials for reliable use:
Housing: made of polycarbonate and fibreglass, it can withstand even the most aggressive gases and polluted air.
Measuring mechanism: Made of brass, it offers a robust and durable measuring solution.
Ring scale – the heart of the system:
Long-term testing: thanks to the use of a calibration weight that does not age or change, the ring scale always returns to the set zero point.
Constant accuracy: No springs or diaphragms that could change shape, for lasting precision.
We therefore offer you a measuring solution that is robust, reliable and remains accurate in the long term.
DURABILITY AND REPLACEMENT WITH NEW DEVICES
Replacement appliances: Using the old appliance number alone, we can easily determine the exact version and offer a fully compatible replacement appliance. The existing wall holes remain usable thanks to a mounting adapter.
New oven pressure regulator
Rixotact_4
in IP65 housing for wall mounting.
…leave their mark.
Furnace pressure regulator “Rixotact” built in 1985, back “for inspection”.
MEASURING DEVICES MANUFACTURED ACCORDING TO YOUR WISHES
We manufacture pressure measuring instruments by hand that are precisely tailored to your individual requirements.
Simply let us know:
- The desired device type
- The required measuring range
- The preferred supply voltage
Our wide range of products includes
- Measuring devices with analogue or digital display
- Pressure transmitters
- Analog indicators
- Devices with limit value contacts
- Three-point step controllers
Flexibility in application: Depending on the connection assignment, each device can be used as a differential pressure gauge, tension gauge or pressure gauge to meet your specific requirements.
| Conversions of pressure units | |||
| Pa | mbar | mmWs | |
| 1 Pa = | 1 | 0,01 | 0,102 |
| 1 mbar = | 100 | 1 | 10,2 |
| 1 mmWs = | 9,81 | 0,098 | 1 |
OVERLOAD CAPACITY INDEPENDENT OF THE MEASURING RANGE
The overload capacity of our measuring devices depends solely on the sealing liquid used, not on the specified measuring range.
Example: A ring scale with a measuring range of ±20 Pa (filled with the sealing liquid filling oil) tolerates a permanent overload of up to ±700 Pa without damage. This ensures the integrity of the measuring mechanism and the reliability of the calibration.
For more extreme conditions:
For expected overloads above 700 Pa with filling oil
or over 1.8 kPa when using Galden
we recommend installing an overload protection device to ensure long-lasting and safe operation.
CERTIFICATION
For applications in potentially explosive atmospheres, we offer devices that are certified in accordance with the ATEX Manufacturer’s Directive 2014/34/EU to ensure the highest safety standards.
Furthermore, we are aware of the importance of continuous quality improvement and therefore work strictly in accordance with the requirements of ISO9001:2015. This commitment to quality is underlined by our certification from the renowned Deutsche Qualitätsmanagement Akademie GmbH, which has successfully certified our company in accordance with this internationally recognised standard for many years.
REFERENCES
Companies from various industries rely on precision measuring devices from Rixen.
Our products are used in the areas of furnace construction, combustion technology, clean room technology, ventilation systems and biogas plants, to name but a few.
Here we offer you an insight into some of our loyal customers:
Pharmaceutical and medical sector (TGA)
General TGA and EX area
Stove and furnace construction
Automotive
(engine construction, paint shop, galvanising shop, etc.)
